Current Readings:

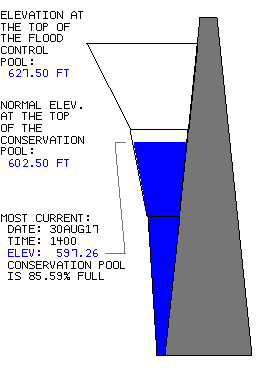

- Pool elevation is 597.26 feet on Wednesday 30Aug17 Time: 1400 hours.
- At this elevation the total amount of water stored in Broken Bow Lake is 883482 acre-feet.
- Reservoir release is 158 cubic feet per second on Tuesday 29Aug17 Time: 2400 hours.
- Conservation pool is 85.59% full.
- Conservation storage filled is 421746 acre-feet which is equivalent to 10.49 inches of runoff over the entire drainage basin.
- Conservation storage empty is 71012 acre-feet which is equivalent to 1.77 inches of runoff over the entire drainage basin.
Gate Changes:
- No Gate Changes have been made in the last 4 days.
Reservoir Data:
| Elevation | Incremental Storage | Cumulative Storage | |||
|---|---|---|---|---|---|
| (feet) | (inches) | (acre-feet) | (inches) | (acre-feet) | |
| Surcharge Pool: | 632.50 | 2.00 | 80541 | 2.00 | 1430880 |
| Flood Control Pool: | 627.50 | 9.84 | 395845 | 33.58 | 1350339 |
| Conservation Pool: | * 602.50 | 12.25 | 492758 | 23.74 | 954494 |
| Inactive Pool: | 559.00 | 11.48 | 461736 | 11.48 | 461736 |
Streambed Elevation: 420.00 feet.
Top of Dam Elevation: 645.00 feet.
* Project has seasonal conservation pool.
All storages based on a contributing drainage area of 754 square miles.
Total drainage area for the lake is 754 square miles (including upstream projects).
Longitude: 94° 41' 0" Latitude: 34° 8' 35"
Links for More Information:

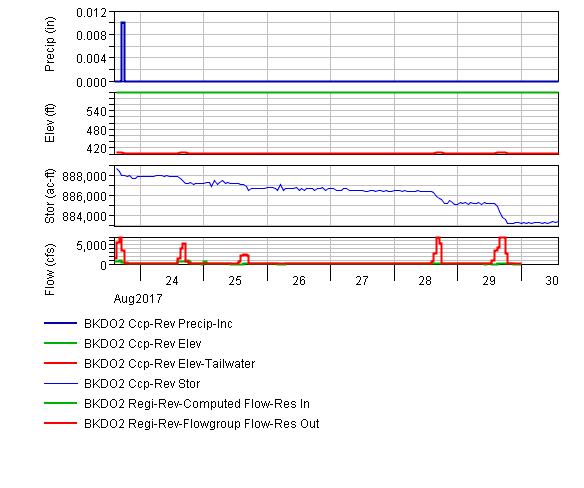

Graphs of Measured and Calculated Lake Parameters:
